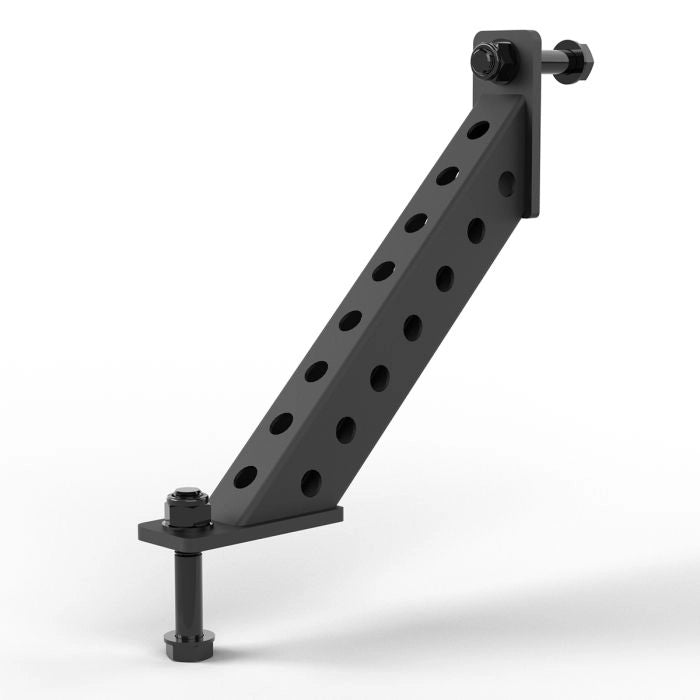

ATX® RIG 45° Strut

ATX® RIG 45° Strut: Cross-brace for increased rig stability

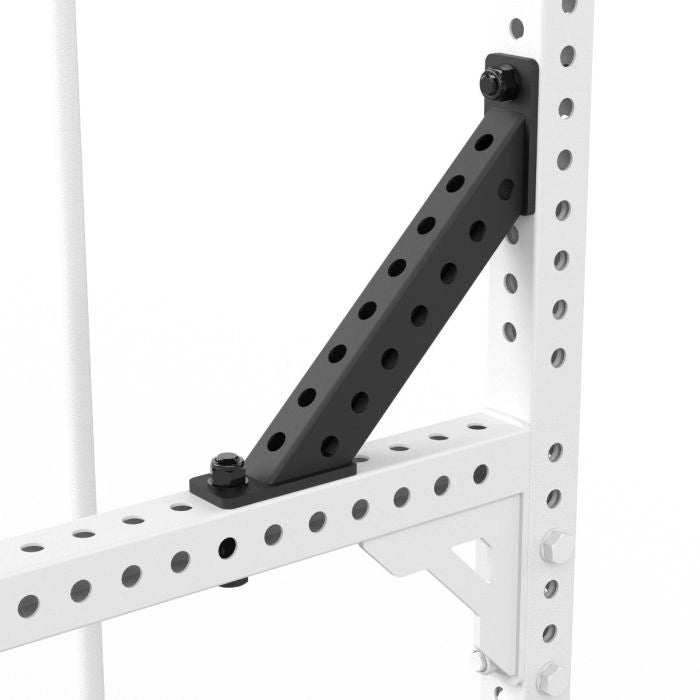

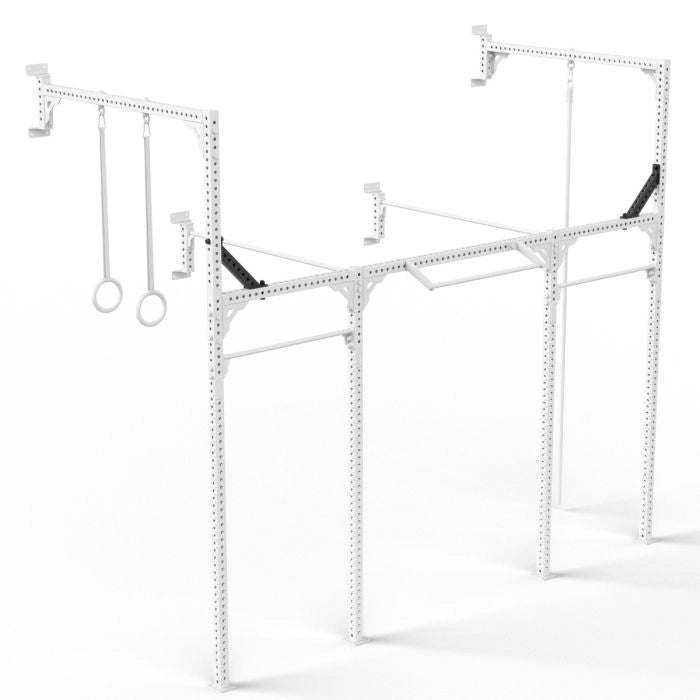

The ATX® 45° Strut is the ideal cross-brace for reinforcing and stiffening RIGs in the ATX® 700 series. Especially for tall RIG structures, it provides additional rigidity whenever the design requires it. At the same time, the strut conveys a tangible sense of stability, safety, and confidence in the rig to both trainees and observers.

The strut can be easily retrofitted and is also available individually.

Product details

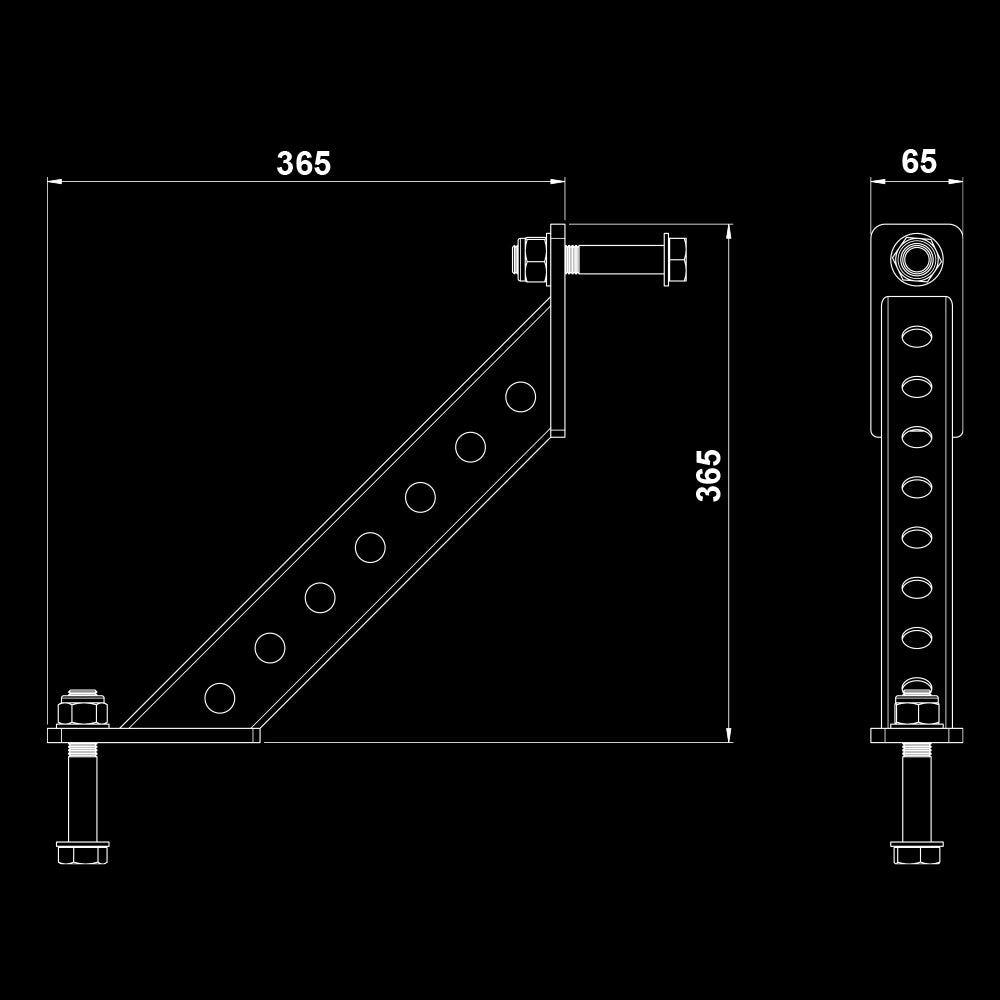

• Width: 365 mm
• Height: 365 mm
• Depth: 65 mm
• Weight: 2.43 kg
• Material: Profile steel tube (70 × 50 × 3.0 mm)
• Color: Black, fine-structure, powder-coated
• Certification: Studio certification according to EN 20957 I.II.IV Class S

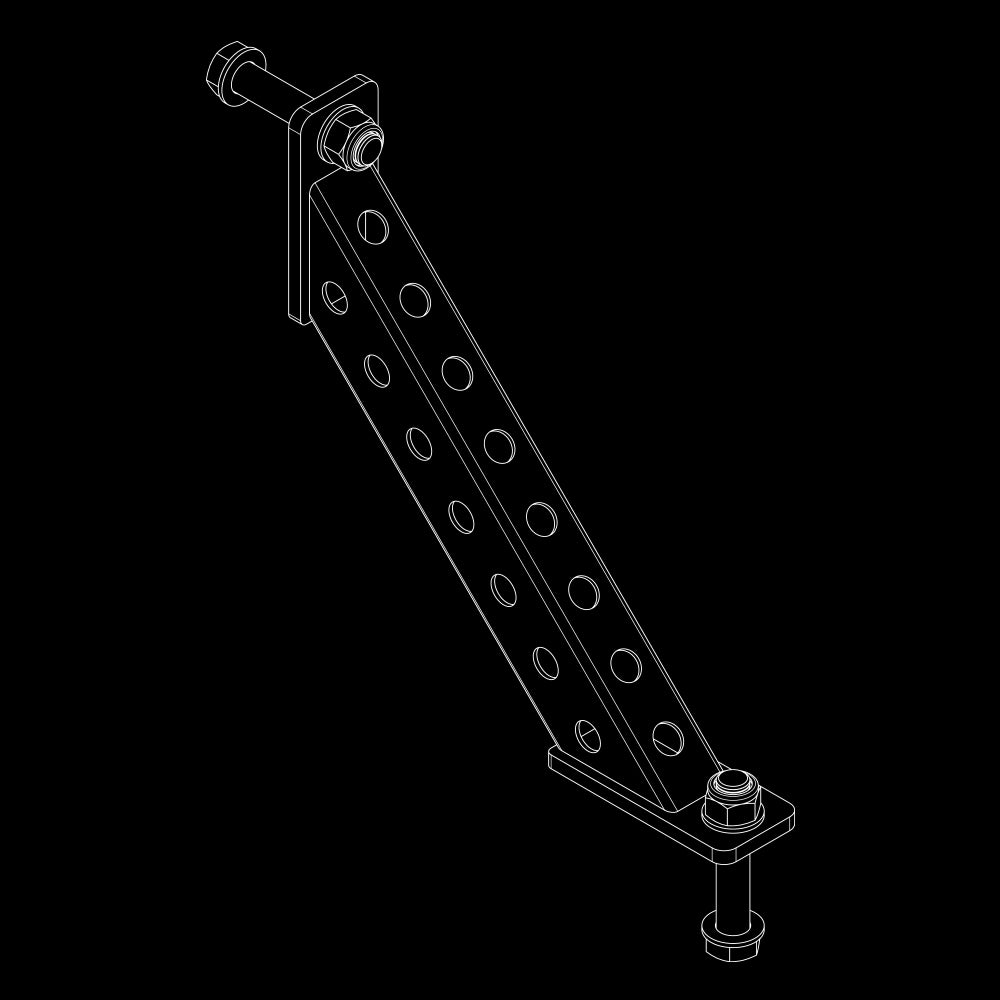

High-quality workmanship

• Profile steel tube 70 × 50 × 3.0 mm
• Bolt-on flanges made of 8 mm thick sheet steel
• Laser-cut and robot-welded for consistently high quality
• Profile tube hole pattern: 50 mm, bore diameter: 21 mm
• Hole spacing in the flanges: 150 mm

Scope of delivery

1 x ATX® RIG 45° Strut incl. set of black galvanized bolts (20 mm)

Item number: MS-ATX-BRA-430
